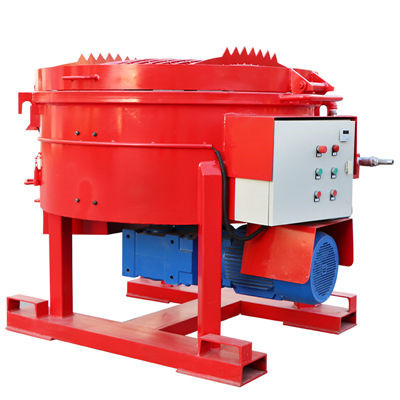

GRM500 Gaode Refractory Pan Mixer

GRM500 Gaode Refractory Pan Mixer overall structure is more reintenance. GRM refractory pan mixer all the work body fixed on the rack. The machine frame is made of quality carbon steel plate, channel steel welded together. And adopted a rigorous product certification and specific technical requirements to achieve the purpose of use.

send email get price

GRM500 Gaode Refractory Pan Mixer

Features

1. Overall structure is more reintenance 2. All the work body fixed on the rack 3. Made of quality carbon steel plate, channel steel welded together

Technical data

Item GRM100 GRM250 GRM500
 Mixing capacity  100kg  250kg  500kg
Rotating speed  49rpm  46rpm  33rpm
 Motor Power  4kw  5.5kw  11kw
 Feeding Height  1000mm  1150mm  1300mm
 Dimensions (mm)  810x810x1090  1020x1020x1120  1250x1250x1300
Weight 420kg 560kg 890kg
    Note: Technical data may change due to technical progress, subject to modification without notice.

Applications

GRM500 Gaode Refractory Pan Mixer is used for mixing refractory materials, friction materials, chemical matrials, precast concrete, mortar, aggregrate mixing and glass materials etc.
