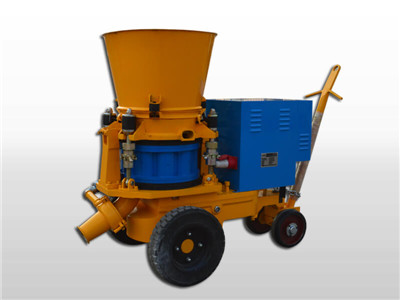

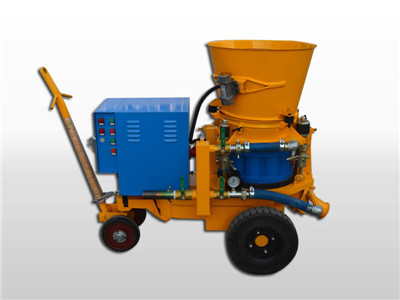

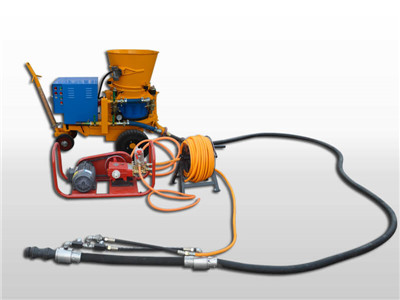

GZ-5ER Refractory gunning machine

GZ-5ER Gaodetec refractory gunning machine is a big size and specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application. With this GZ-5ER refractory dry gunning machine, you can get low dust and high performance spraying flow in nozzle.

send email get price

GZ-5ER Refractory gunning machine

Features

1. A big size and specifically designed for refractory dry-mix shotcrete applications; 2. As well as for concrete shotcrete application; 3. Get low dust and high performance spraying flow in nozzle.

Technical data

Rated Output 1-5m3/h(2-10 ton/h)
Max. Horizontal Conveying Distance 200m
Max. Aggregate Size Φ15mm
Conveying Hose Inner Diameter 51mm
Operating air Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 8~9m3/min(285-325CFM)
Motor Power 5.5KW
Voltage 3 phase, 380V, 50Hz
Material Charging Height 1.1m
Rotor Speed 0-13.2r/min
Overall Dimension(L×W×H) 1.35×0.75×1.2m
Weight 720kg

Applications

Refractory dry-mix shotcrete applications, as well as for concrete shotcrete application.
