Shotcrete pump for sale

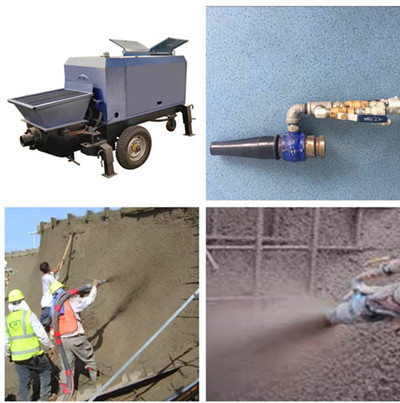

We are a wet mixtureshotcretepump manufacturers. We from 1.5 m3 / hshotcretepump output to 10 m3 / h.Motor, diesel engine and gasoline engine options available to customize.We shotcrete pump spray can be used for the wet shotcrete, concrete slurry pump, roads, railways, mining and tunnel, spraying mixed vegetation slope of highway, railway, grouting wall, the fine aggregate concrete, and so on.We have a number of sprayed concrete pump for sale:

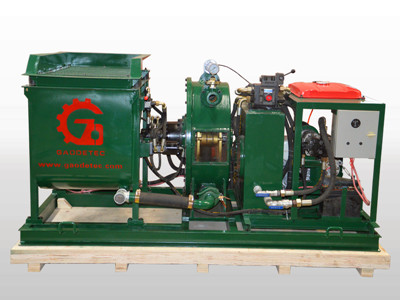

GDS1500 1.5 mpa wet-mix shotcreting pump
Item
Description
Pressure
1.5 Mpa ( Chinese squeeze hose )/3.5 Mpa ( Trelleborg squeeze hose )
Output
1.5-3m3/h
Max. Aggregate
10mm
The Squeeze Hose
ID 50mm
Conveying Hose
ID 38mm
Pump head
GH50-455
Power
Honda GX390 Gasoline engine
Overall Dimension
1900x850x1250mm
Hopper volume
200 Liter
Oil tank
120 Liter
Weight
610kg
Requested air compressor
3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance
15 m ( Chinese squeeze hose )/30 m ( Trelleborg squeeze hose )
Horizontal Conveying Distance
40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose )
GDS1500 1.5 mpa wet-mix shotcreting pump
Item
Description
Pressure
1.5 Mpa (Chinese squeeze hose)/3.5 Mpa (Trelleborg squeeze hose)
Output
1.5-3m3/h
Max. Aggregate
8mm
The Squeeze Hose
ID 50mm
Conveying Hose
ID 38mm
Pump head
GH50-455
Power
CFZ12 Diesel Engine, 10hp
Overall Dimension
2150x1100x1150mm
Hopper volume
130 Liter
Weight
660kg
Requested air compressor
3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance
15 m (Chinese squeeze hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance
40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose)
GDS1500 1.5 mpa wet-mix shotcreting pump
Pressure
1.5 Mpa (Chinese squeeze hose)/ 3.5 Mpa (Trelleborg squeeze hose)
Output
1.5-3m3/h
Max. Aggregate
8mm
The Squeeze Hose
ID 50mm
Conveying Hose
ID 38mm
Pump head
GH50-455
Power
5.5kw, electric motor
Overall Dimension
1900x850x1250mm
Hopper volume
200 Liter
Weight
610kg
Requested air compressor
3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance
15 m (Chinese squeeze hose)/30 m (Trelleborg squeeze hose)
Horizontal Conveying Distance
40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose)
GDS2000G gasoline engine shotcrete pump
Item
Description
Working Pressure
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)
Output
6-8m3/h
Max. Aggregate
10mm
The Squeeze Hose
ID 50mm
Conveying Hose
ID 50mm
Pump head
GH50-680
Power
