Electric shotcrete machine manufacturer
Gaode Equipment Co., Ltd. is anelectric shotcrete machine manufacturer.We have now developed full series ofdry-mix electric shotcrete machineandwet-mix electric shotcrete machine, output from 1.5m3/h to 9m3/h.
electric shotcrete machine technical data:

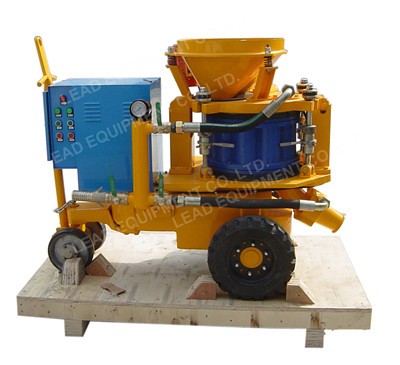

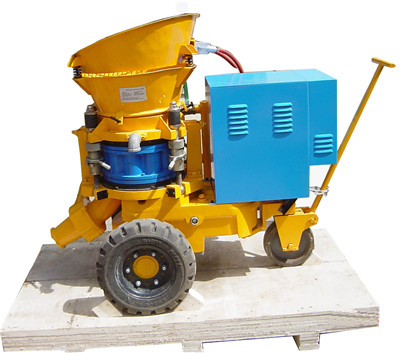

dry mix electric shotcrete machine
Items
GZ-3E
GZ-5E
GZ-9E
Rated Output
3m3 /h
5m 3 /h
9m3 /h
Max. Horizontal Conveying Distance
200m
200m
200m
Suitable Mix Ratio(Cement/Sand)
≤1:3~5
≤ 1:3~5
≤1:4~5
Water Cement Ratio
< 0.4
< 0.4
< 0.4
Max. Aggregate Size
Dia.10 mm
Dia.15 mm
Dia.20 mm
Conveying Hose Inner Diameter
Dia.38/Dia.50mm
Dia.51mm
Dia.64 mm
Operating air Pressure
0.2-0.4MPa(29-58PSI)
0.2-0.4MPa(29-58PSI)
0.2-0.4MPa(29-58PSI)
Air Consumption
5~6m3/min(180-215CFM)
8~9m 3 /min(285-325CFM)
10~12m3/min(357-430CFM)
Motor Power
3kW(4hp), IP55
5.5kW(7.5hp)
7.5kW, Y132M-4, IP55
Voltage
220V, 380V, 440V, 660V, 50Hz/60Hz
220V, 380V, 440V, 660V, 50Hz/60Hz
220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height
0.9m
1.1m
1.1m
Rotor Speed
14r/min
11r/min
11r/min
Overall Dimension(L× W× H)
1.13×0.54×1.02m
1.35× 0.75× 1.2m
1.65×0.9×1.25m
Net Weight
430kg
720kg
900kg

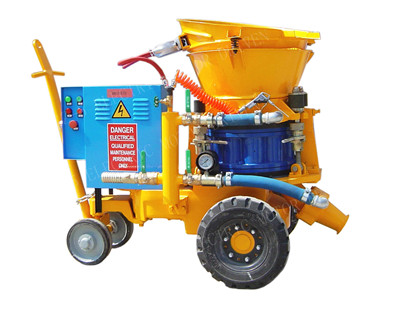

wet mix electric shotcrete machine
Items
GSZ3000E
Rated Output
5m3 /h
Max. Horizontal Conveying Distance
35m(wet)/200m(dry)
Max. Aggregate Size
15mm
Concrete Slump
8 -15cm
Conveying Hose Inner Diameter
51/ 64mm
Operating air Pressure
0.3-0.6MPa (43-86PSI)
Air Consumption
10~ 12m3 /min(357-430CFM)
Main Motor Power
7.5kW(10hp)
Dosing Pump
BRJ15
Dosing Pump Rated Pressure
0.6MPa(86PSI)
Dosing Pump Output
17.5 -88L /h
Voltage
220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height
1.17m
Rotor Speed
11r/mi
Overall Dimension(L × W × H)
2.05× 0.95× 1.18m
Net Weight
1200kg
