For pumping of wet concrete shotcrete machine china

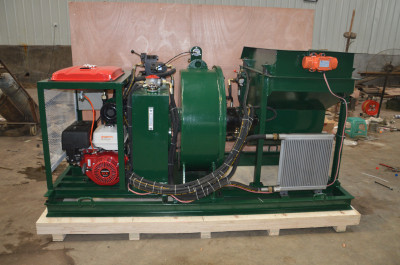

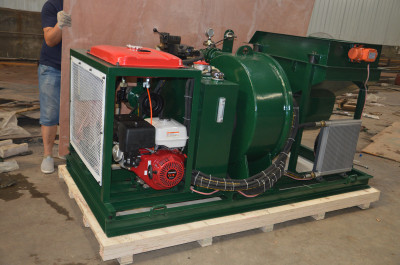

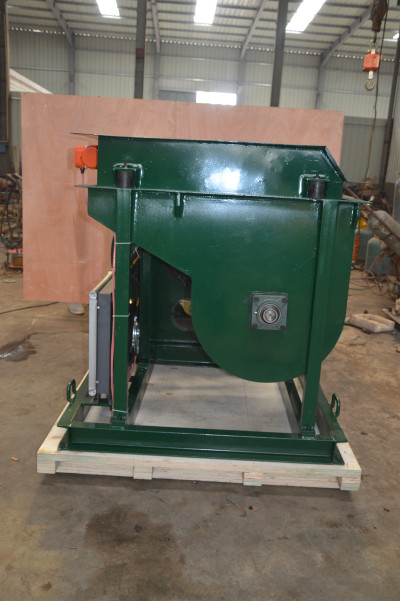

We GDS2000G is a lightweight sprayed concrete pump shotcrete machine china is directly driven by a highly reliable planetary gear box and the hydraulic power unit.The main solid is better add improved direct drive merry-go-round.
Technical data sheet:
Item
Description
Working Pressure
1.5 Mpa (Chinese Hose)/3.5Mpa(Trelleborg Hose)
Output
6-8m3/h
Max. Aggregate
10mm
The Squeeze Hose
ID 50mm
Conveying Hose
ID 50mm
Squeeze pump
GH50-680
Power
Honda GX390 Gasoline shotcrete machine china Engine (low pressure) Honda GX630 Gasoline engine(high pressure)
Overall Dimension
2350x1250x1450mm
Hopper volume:
240 Liter
Hopper rated rev.
76r/min
Oil tank
130 Liter
Weight
900kg
Requested air compressor
6m3/min, 0.6Mpa Pressure
Vertical Conveying Distance
15 m (Chinese Hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance
40 m (Chinese Hose)/80 m (Trelleborg Hose)
